Glyphosate Pesticide Filling Machine Fully Automatic 1L-5L

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE/ISO9001

Model Number: DGP-Z-8DL

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 2500 mm(L)*2000 mm(W)* 2500 mm(H)

Delivery Time: 30 working days

Payment Terms: L/C, T/T

Supply Ability: 25 Sets Per Month

Get Best Price
High Light:

Glyphosate Pesticide Filling Machine

,

Pesticide Filling Machine Fully Automatic

,

5L pesticide packing machine

Voltage:
220V/380V,380V/50Hz
Material:
SUS 304
Certification:
ISO9001,CE,ISO,CE/ISO
Warranty:
1 Year,12months,One Year
Machine Type:
Piston Filling
Filling Accuracy:
+/-0.5%
Filling Range:
1L-5L
Weight:
1500 Kg
Voltage:
220V/380V,380V/50Hz
Material:
SUS 304
Certification:
ISO9001,CE,ISO,CE/ISO
Warranty:
1 Year,12months,One Year
Machine Type:
Piston Filling
Filling Accuracy:
+/-0.5%
Filling Range:
1L-5L
Weight:
1500 Kg
Glyphosate Pesticide Filling Machine Fully Automatic 1L-5L

Pesticide Filling Machine

Glyphosate Pesticide Filling Machine Fully Automatic 1L-5L 0

Video Link:

https://www.youtube.com/watch?v=BzrWG9aEp-k

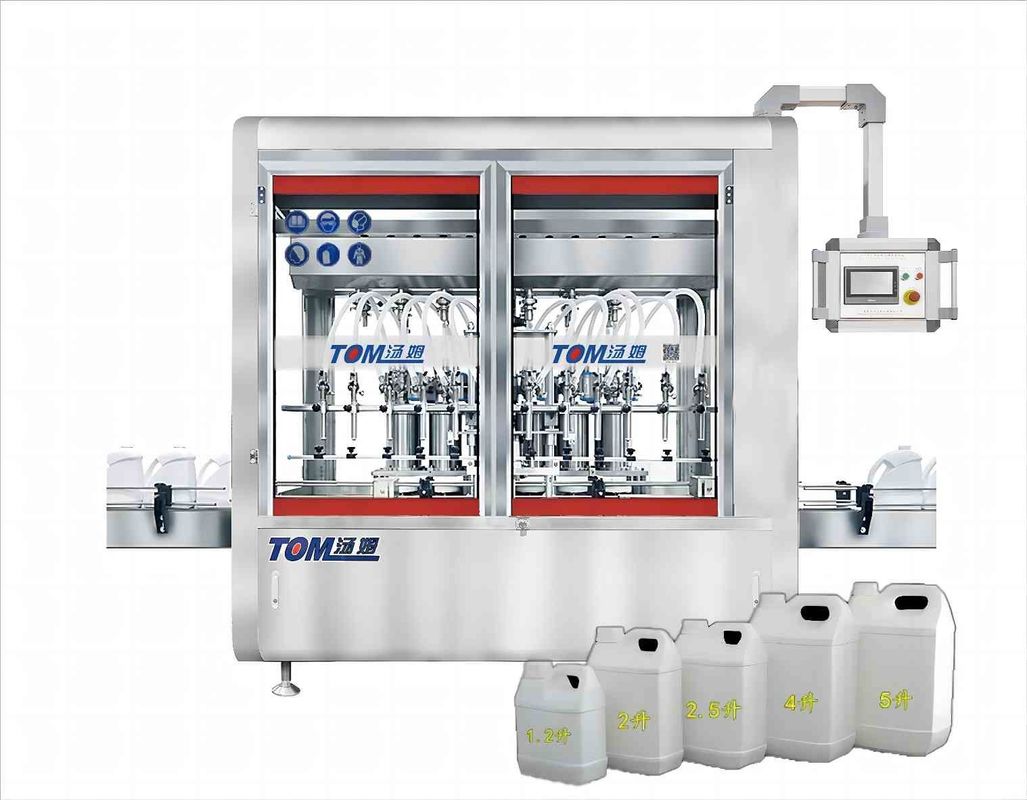

This 1L-5L Pesticide Filling Machine is special designed piston filling machine which following the pesticide characteristic. The overall performance has reached the international advanced level, some of the performance has exceeded the best level of similar foreign products, and has been recognized by the world's giant companies. This product is a linear piston filling machine, with PLC and touch screen automation control, with accurate measurement, advanced structure, stable operation, low noise, wide adjustment range, filling speed and other advantages; it is suitable for SC, EC, SL and so on, automatically count the bottle, quantitative filling, conveying out bottles.



Pesticide Filling Packaging Machine For 50-1000ml Pesticide​ Major Parameter:

No. Items Performance
01 Machine dimension(L×W×H) 2400mm×1400mm×2600mm
02 Weight of machine 1100KGS
03 Bottle mouth diameter ≥φ15mm
04 Suitable bottle height:100-250mm;diameter:45-95mm
05 power supply AC380V;50HZ
06 Filling range 1L-5L
07 Filling error ≤±5ml (test with 1L)
08 Filling head 8
09 Capacity about 2400bottles/hour (test with 1L)



Detailed Introdce:



Bottle clamp device:

The machine equipped bottle clamp device, can oriented the center of filling nozzle and bottle mouth; Change specifications without tool adjustment, convenient and quick, and has the scale marks;Bayonet are all of high quality stainless steel material processing, long service life.

Glyphosate Pesticide Filling Machine Fully Automatic 1L-5L 1

Safety door

Glyphosate Pesticide Filling Machine Fully Automatic 1L-5L 2

The machine with safety door which can keep operator safe, when open this door, the machine will stop automatically.

Electrical part: use import electrical element, such as Panasonic from Japan, Schneider from France,more than 10 years of commissioning experience, and market feedback, stable, and durable.

Glyphosate Pesticide Filling Machine Fully Automatic 1L-5L 3

Materials tank:All using quick-loading clamp form, all pipe joints are equipped with anti-drip gasket; put an end to the use of raw materials to ensure that equipment will not be used for a long time infiltration, drip leakage;



Suitable Bottle:

Glyphosate Pesticide Filling Machine Fully Automatic 1L-5L 4

Packaging & shipping:

Glyphosate Pesticide Filling Machine Fully Automatic 1L-5L 5



Company Overview--Jiangsu Tom Group

Glyphosate Pesticide Filling Machine Fully Automatic 1L-5L 6

Tom "The Little White House"

Jiangsu Tom Group is an enterprise specializing in the production of pesticide / veterinary medicine, fertilizer and chemical intelligent equipment. The factory covers an area of 150 acres and has a construction area of 120,558 square meters. It has 710 employees, 2 doctoral students, 30 master students, and 358 undergraduates. It has obtained ISO9001 quality system. Certification, ISO14001 Environmental Management System Certification, OHSAS18001 Occupational Health and Safety System Certification, CE Certification, Jiangsu Province Specialized Specialized New "Little Giant" Enterprise, Changzhou Specialized Specialized New Small and Medium Enterprise, 125 National Utility Patents and 26 National Inventions patent. Over the past 24 years, after the hard work of Tom people, Tom Group has continued to innovate and develop, keeping pace with the times, providing generations of advanced intelligent packaging equipment for more than 3,300 pesticide / veterinary medicine, fertilizer and chemical companies, and building Industry 4.0 intelligent factories for customers; Provide automated three-dimensional warehouse; create smart factory production data acquisition and execution system (MES) for customers.
