One Head Lubricant Filling Machine 200-1000KG Semi Automatic Weigh Filler

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: DGP-CZ-1TA

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Plywood case

Delivery Time: 30 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 sets per month

Get Best Price
Highlight:

One Head Lubricant Filling Machine

,

200KG Lubricant Filling Machine

,

1000KG semi automatic weigh filler

Material:
Stainless Stell 304
Filling Volume:
200-1000KG
Speed:
50 Bottle Per Hour
Filling Type:
By Weigh
Application:
For Liquid
Model:
DGP-CZ-1TA
Filling Head:
1
Material:
Stainless Stell 304
Filling Volume:
200-1000KG
Speed:
50 Bottle Per Hour
Filling Type:
By Weigh
Application:
For Liquid
Model:
DGP-CZ-1TA
Filling Head:
1
One Head Lubricant Filling Machine 200-1000KG Semi Automatic Weigh Filler

DGP-CZ-1TA Semi-automatic One Filling Head weighing filler for 200-1000KG

Major characteristics:

This machine is for 200L of barrel filling, filling head can multiple azimuth rotating, can achieve drum filling by worker adjust filling head. Especially suitable for water, oil paint, lubricate oil and Soy lethitin quantitative filling. It Is a lubricating oil, medicine, cosmetics, and fine food industries ideal packing machine.

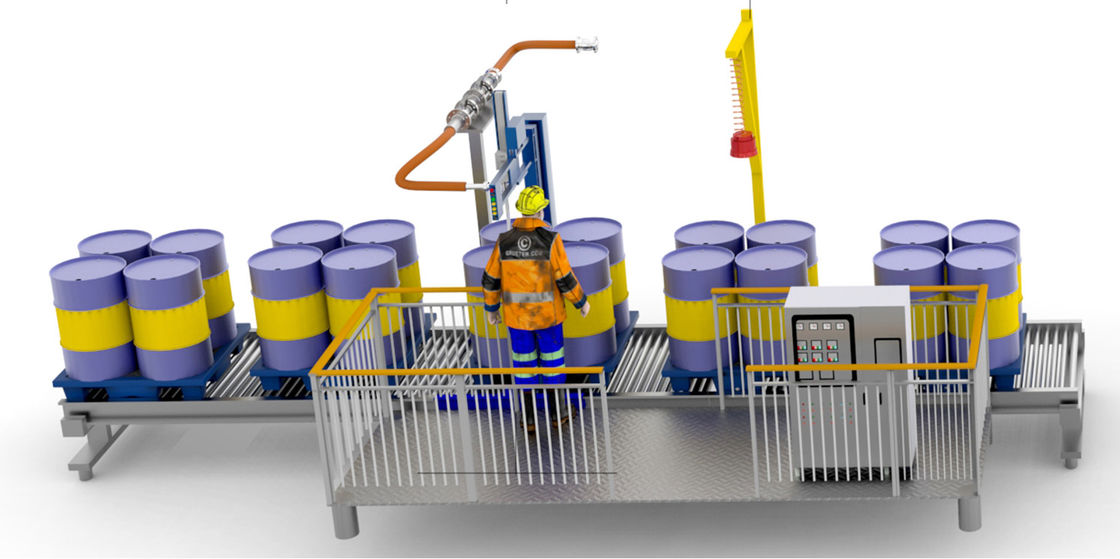

Description: the entire line is consists of three stations: the barrel feeding station, filling station, drum outlet station, truck put empty drum on feeding station, automatic send to filling station, worker move the filling head, then automatic filling, after filling, automatic outlet drum, then capping by worker.

Technical parameters



1

Size (L*W*H)

1600*2000*3000mm

2

diameter of drum’s mouth:

≥20mm(can special design)

3

diameter of drum:

200L

4

filling error:

≤ +-0.1%
5

power:

2.5KW

6

air source

0.5MPa clean and stable air

7

power supply

AC380V 50HZ

8

filling head

1
9

speed

<50 drum/hour(200Ldrum)

10

working temperature

0℃ -- 50℃

11

Working condition relative humidity

<95% (non-condensing)

12

Material interface

standard flange, material inlet pressure is less than 0.3 MPa

13

material

contact part is 304 stainless steel, conveyor roller is made of carbon steel



One Head Lubricant Filling Machine 200-1000KG Semi Automatic Weigh Filler 0



One Head Lubricant Filling Machine 200-1000KG Semi Automatic Weigh Filler 1One Head Lubricant Filling Machine 200-1000KG Semi Automatic Weigh Filler 2

Jiangsu Tom Group is an enterprise specializing in the production of pesticide / veterinary medicine, fertilizer and chemical intelligent equipment. The factory covers an area of 150 acres and has a construction area of 120,558 square meters. It has 710 employees, 2 doctoral students, 30 master students, and 358 undergraduates. It has obtained ISO9001 quality system. Certification, ISO14001 Environmental Management System Certification, OHSAS18001 Occupational Health and Safety System Certification, CE Certification, Jiangsu Province Specialized Specialized New "Little Giant" Enterprise, Changzhou Specialized Specialized New Small and Medium Enterprise, 125 National Utility Patents and 26 National Inventions patent. Over the past 24 years, after the hard work of Tom people, Tom Group has continued to innovate and develop, keeping pace with the times, providing generations of advanced intelligent packaging equipment for more than 3,300 pesticide / veterinary medicine, fertilizer and chemical companies, and building Industry 4.0 intelligent factories for customers; Provide automated three-dimensional warehouse; create smart factory production data acquisition and execution system (MES) for customers.

Jiangsu Tom is a national high-tech enterprise, an enterprise that has obtained the National Small and Medium Enterprise Venture Fund, a member enterprise of the World Trade Center, a member enterprise of the National and Provincial Daily Chemical Industry Association, a "little giant" enterprise in Jiangsu Province, and a professional and special innovation in Changzhou. Small and medium-sized enterprises, Changzhou service manufacturing demonstration enterprises, Changzhou Industrial Design Center, Jiangsu Province Certified Enterprise Technology Center, Jiangsu Province Intelligent Packaging Complete Equipment Engineering Technology Research Center, and Premier Wen visited Tom's Laboratory in 2009. So far, I have The company has more than 3,000 domestic daily chemical customers and more than 300 foreign daily chemical customers. Its excellent performance and perfect after-sales service system have won unanimous praise from users. Syngenta, Bayer, BASF, Luxi Chemical, Kim Jong Il, Stanley, nopson, Lear, Shurong, new Chaoyang, Hans, Fuhua, Huaying, Jiangshan, Huifeng, Kesheng, Fengshan, Jiannong, Yanhua Yongle, Huaxing, red sun, Guoguang, Zhengbang, sublimation Bayer, Yingtai, Wynca, Qizhou, Shandong Zhongnong, binnong, Qiaochang, Shengbang LVYE, Runfeng, LvBa, cosekinon, tianbang, Jiner Fengbang, Hansheng, hailier, Guangxi Institute of chemical industry, Tianyuan, Tianjin Huayu, Hebei Weiyuan, Yinnong, Lingang chemical and other well-known pesticide / veterinary medicine and fertilizer enterprises at home and abroad have become Tom's strategic partners and other well-known pesticide/veterinary medicine and fertilizer companies at home and abroad have become Tom's strategic partners.
